Water utilities’ plans to make water soft no simple feat

Monday 16 Oct 17

Contact

Hans-Jørgen Albrechtsen
Professor
DTU Environment
+45 45 25 15 86

Contact

Berit Godskesen
Postdoc
DTU Environment
+45 45 25 16 06

Contact

Martin Rygaard
Associate Professor
DTU Environment
+45 45 25 15 70
Drinking water in the Danish capital has very high calcium levels. Centralized water softening could therefore be an advantage. Following extensive investigations by DTU Environment, HOFOR is to begin decalcifying water at Brøndbyvester Waterworks.

Danish drinking water is famous for its high quality, but in several parts of the country—not least in the Greater Copenhagen area—the water is also very hard (high in calcium and magnesium). The calcium is a major inconvenience to consumers, as it builds up in boilers and water taps, on tiles and heating coils, and the hard water also means greater energy and soap consumption.

There is therefore major interest in removing the calcium before the water reaches the taps. This is now becoming a reality. After several years of pilot projects and pre-analyses, Greater Copenhagen Utility (HOFOR) is commencing water decalcification in Brøndby Municipality.

Denmark lags far behind when it comes to centralized water softening. Countries such as Germany, Sweden, and the Netherlands have had water softening initiatives in place for some time. Based on these countries’ experiences, HOFOR has opted for a technology known as a pellet reactor. This involves adding sand and a base, causing the calcium to deposit on the sand grains, which can then be removed in the form of calcium pellets (please see fact box below).

A pilot study has shown that the process can soften hard Danish groundwater by as much as 71 per cent. The water is not completely calcium-free, but this is not the aim, as calcium-free water is corrosive and would therefore damage water pipes.

Pros and cons

Calcium is a nuisance when it gets deposited everywhere we use water, but it is also an important mineral for human bones and teeth. So the first question asked in connection with the prospect of reduced calcium in the water was whether the calcium levels had any impact on health.

"The consumption of chemicals is transferred from the consumer to the central waterworks, which may be better equipped to deal with this in a safe and controlled manner"
Professor Hans-Jøren Albrechtsen, DTU Environment

“We’ve been involved in some desk studies on the possible effect of calcium in relation to consumers’ teeth, but the studies showed no significant correlation between the number of tooth cavities and calcium in the water. There are also indications that removing magnesium from the water supply increases the risk of cardiovascular disease. However, the pellet reactor is excellent in this regard, as it only removes calcium,” explains Professor Hans-Jørgen Albrechtsen, DTU Environment.

There is no purely medically reason for water utilities not to soften water, and on the positive side, consumers will not have to use as much soap, detergent, and shampoo. With fewer limescale deposits, appliances will also consume less energy and will require less frequent descaling.

“You could say that the consumption of chemicals is transferred from the consumer to the central waterworks, which may be better equipped to deal with this in a safe and controlled manner. And even though decalcification at the waterworks means slightly more expensive water, consumers can still save money if they reduce their soap consumption correspondingly,” says Hans-Jørgen Albrechtsen.

Several technologies to choose from

The pellet method is not the only technology option for water softening. Levels of iron and heavy metals in water vary a lot from location to location, so research is needed into links between technology and water quality.

For example, Hans-Jørgen Albrechtsen notes that water with high iron or phosphate levels causes the pellets produced during decalcification to be more airy and flaky. They do not settle as easily, making them more difficult to separate from the water. However, this did not happen for any of the waterworks and water types the technology has been tested with.

If a bore is close to the coast, the water can contain so much sodium that the limit is exceeded when sodium hydroxide is added as the base to start the calcium precipitation. In such situations it may be necessary to use another base, such as calcium hydroxide, but this means adding additional calcium and producing even more pellets from the process.

Alternative technologies include ion exchange, as used in dishwashers, where calcium and magnesium are swapped with sodium and the water is then regenerated using salt. Or membrane treatment, where the water is filtered so thoroughly that only H2O comes through. This is how sea water is desalinated.

Membrane technology may be appropriate if there are unusually high levels of heavy metals, pesticides, or even solvents from industrial processes in the water. The method uses a lot of energy, but is effective and may save an additional step using active carbon, which might otherwise be required to remove the unwanted substances. But the membrane also removes the minerals you actually want in the water, such as magnesium, and they must then be re-added.

Action and reaction

In parallel with this evaluation of methods, research is also needed into how the new softening technology interacts with the normal water treatment for heavy metals etc.

Many waterworks pass water through a sand filter. This serves as a strainer to remove naturally occurring substances, such as iron and other metals, and also as a biological reactor, because the bacteria in the sand convert substances such as ammonium and manganese.

But the new softening technology may affect these processes. The pellet reactor removes some of the iron in the water. Since the iron is what draws heavy metals such as nickel and arsenic through the sand filter, removing it may cause problems. The bacteria’s biological conversion of ammonium etc. may also be reduced if there is insufficient copper in the water.

On the other hand, less iron means less sludge in the sand filters. This means less water and energy will be required to rinse them, and less backwashing will mean less interference with the bacteria populations.

Researchers will take samples and measure the water during the first year to get to the bottom of these issues.

How to use the calcium

Calcium pellets are the last link in the chain of events centralized water softening initiates. Hans-Jørgen Albrechtsen estimates that when decalcification has been introduced at all HOFOR’s waterworks, around 14,000 tonnes of pellets will be produced each year. What can be done with them?

They could be used for soil improvement in agriculture. But again, thorough analysis is necessary before taking action. DTU Environment, HOFOR, and Niras are therefore jointly examining the physical and chemical properties of the pellets.

Calcium pellets are not a simple substitute for agricultural lime, as they are as hard as marbles and will take longer to dissolve and have an effect in a field. They can be crushed mechanically, but that requires energy and the original sand grains may frustrate the process.

An alternative solution where the calcium is not precipitated onto sand, but onto crushed pellets, would make the final product more pure and hence more useful. But there are other possible applications for the calcium pellets, such as a substitute for sand in the construction sector, for glass production, and as a filler in carpet squares.

Overall, Hans-Jørgen Albrechtsen believes the balance of socio-economic, technical, and environmental factors—and consumer best interest—is tipped in favour of softening water. However, the trial should be followed closely, to collect solid scientific documentation for the beneficial effects.

A study has therefore been launched, headed by postdoc Berit Godskesen from DTU Environment. This will take measurements before and after centralized softening is introduced and show whether the expected effects are realized (reduced energy and soap consumption, longer lifetimes for kettles, washing machines, toilets, etc. and less frequent descaling).

How HOFOR will decalcify drinking water

In Brøndby Municipality, calcium is to be removed using a pellet reactor.


The principle is that the groundwater is pumped into a pipe and a base is added, typically sodium hydroxide (NaOH), to increase the pH value—along with some sand. The base causes the calcium in the water to precipitate and deposit on the sand grains, which are transformed into large calcium pellets. These become so heavy that they fall to the bottom and can be extracted, while the softened water is fed into a container and adjusted back to normal pH using CO2.


In the Greater Copenhagen area, the calcium level in the water will be reduced so that the water hardness is lowered from 20 dGH to 10 dGH.

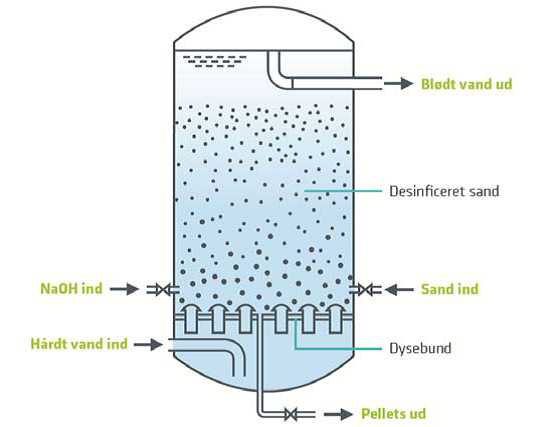

How the pellet reactor HOFOR will use to soften water in the Danish capital works:



English translation













  • NaOH in


  • Hard water in





English translation



  • Soft water out




  • Disinfected sand



  • Sand in


  • Nozzle plate


  • Pellets out
